Product Description

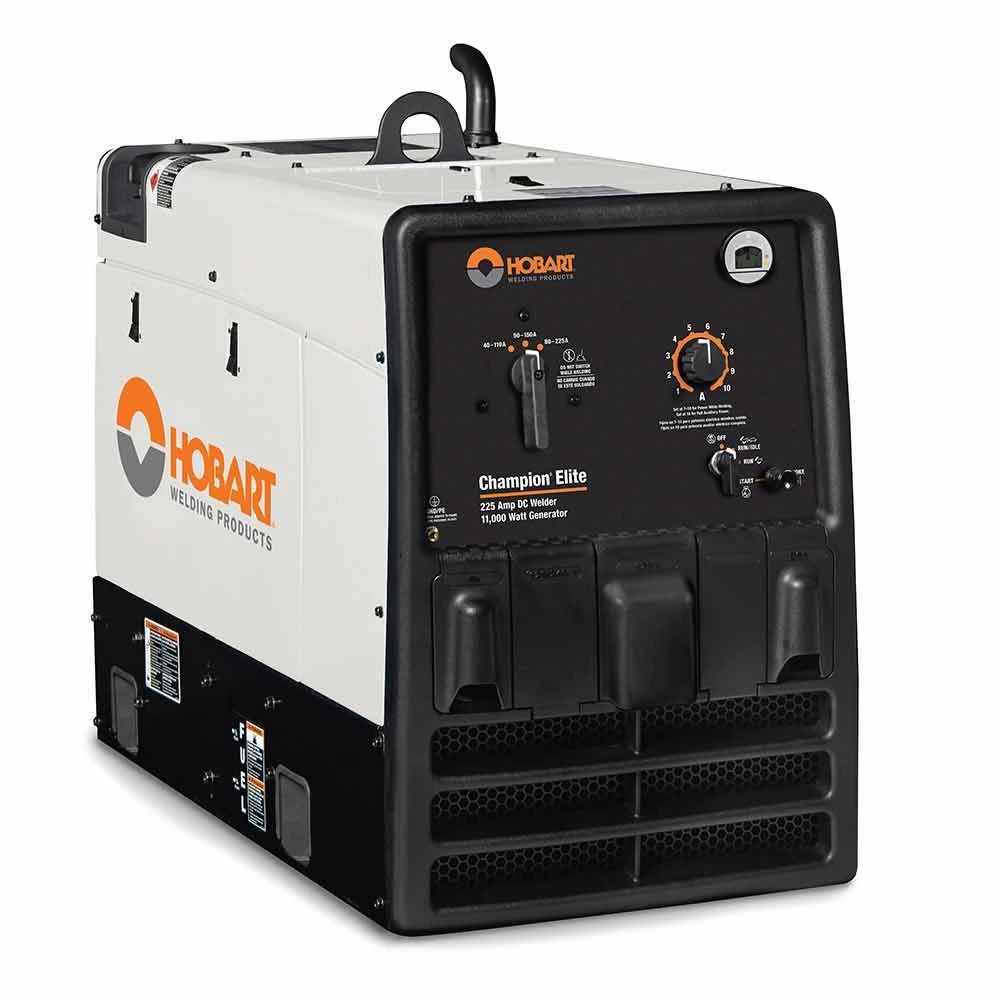

Hobart Champion Elite Welder/Generator is designed to be a jobsite workhorse. Hobart Champion ELITE combines an 11,000 watt generator with a DC welder for general construction and emergency power applications. It features a rugged, fully enclosed case which provides a protective barrier and lowers noise. All receptacles on the ELITE feature push-button reset circuit breakers. Auxiliary power while welding gives you the capability to run other equipment (lights, grinders) at the same time you are welding. Quick set current control, is easy to set up, provides smooth arc starts and maintains optimum arc characteristics. Cables sold separately. The Champion Elite features DC weld output for smooth arc performance and easy starts. There are four 120 volt GFCI (20 amp), one 240V (50 amp) and one 120/24 volt (50 amp) receptacles with push-button reset circuit breakers. This welder/generator is made with heavy-duty construction with 100% duty cycle, fully-enclosed engine design, large batter, rugged electrical connections and wiring. no tools oil change and standard hour meter help maintain routine scheduled oil servicing. The quick set current control, makes set up and start welding easy. The auto-ideal is for greater fuel savings and reduced notice. Ideal for maintenance, construction, farm/ranch, rental and home applications.
Product Specifications
| AMPS | 40 – 225 |
|---|---|
| Applications | Processes: Stick (SMAW) |
| Feature Products | – |
| Fuel Tank Capacity | 12 gallon |
| HP | 23 HP |
| Model Number | 500562 |
| Output | Rated Output at 25V 225 A at 100% Duty Cycle |
| Phase | Single |
| RPM | 300 |
| Product Material | 490 lb. |
| Size | H: 28 in. x W: 20in. X D: 41 in. |
| Spec Weight | 490 Lbs |
| Voltage | Max. Open-Circuit Voltage 80 |
| Volts | 120/240 VAC |
| Watts | Generator Power 11,000 W (10 kVa/kW), 500 watts continuous while welding |
| Weight | 503.000000 |
